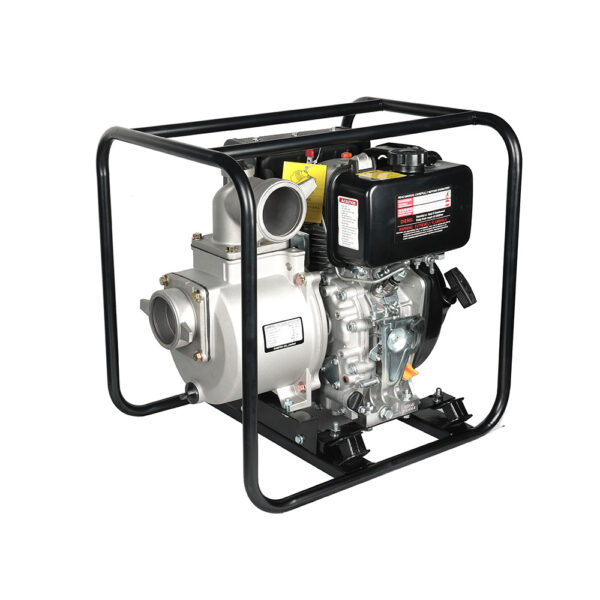

DP20
The Campes diesel pump is powered by a robust 4-stroke diesel engine and features a bilobed wheel design. Its full-frame structure ensures exceptional performance even in the harshest conditions. With easy maintenance and versatile applications, this pump is built to withstand demanding environments.
Specs
| Model | DP20 |
| Diameter (mm) | 50(2″) |
| Pump-Capacity(lit/min) | 367 |
| Pump-Maximum Total Head(m) | 15 |
| Max suction lift(m) | 8 |
| Rotational speed (rpm) | 3600 |
| Self-priming time(s/4m) | 80 |
| Dimension (L*W*H)(mm*mm*mm) | 490*405*515 |
| Net weight(kg) | 35 |
| Engine model | D170F |
| Engine type | Single-cylinder, vertical, four-stroke Air-cooled, direct injection |
| Bore*stroke(mm*mm) | 70*55 |
| Dieplacement(L) | 0.211 |
| Power(kw) | 2.8/3600rpm |
| Fuel consumption rate(g.KW/h) | ≤288 |
| Compression ratio | 20 |
| Lubrication system | Pressure Splashed |
| Engine starting system | Recoil starter |
| Fuel type | Summer 0# Winter -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 0.75 |
| Fuel tank capacity(L) | 2.5 |
