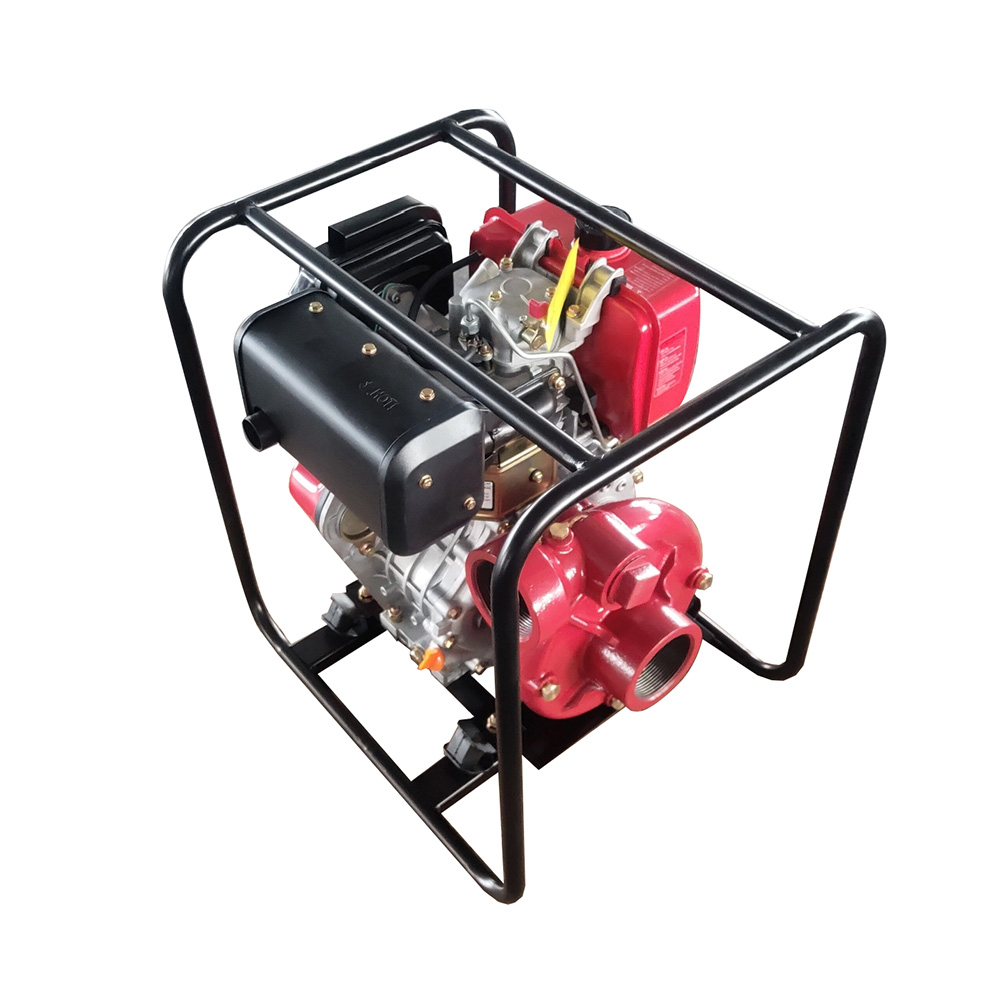

DP40HC
This series water pump is powered by a high-performance Campes 4-stroke diesel engine, delivering powerful output, high pressure, and impressive torque. With low oil consumption, it can increase pressure by 50%, enabling it to pump water higher and farther with ease.
Specs
| Model | DP40HC |
| Diameter (mm) | 100(4″) |
| Pump-Capacity(lit/min) | 1500 |
| Pump-Maximum Total Head(m) | 70 |
| Max suction lift(m) | 8 |
| Rotational speed (rpm) | 3600 |
| Self-priming time(s/4m) | 40 |
| Dimension (L*W*H)(mm*mm*mm) | 605*525*625 |
| Net weight(kg) | 76 |
| Engine model | D186FA |
| Engine type | Single-cylinder, vertical, four-stroke Air-cooled, direct injection |
| Bore*stroke(mm*mm) | 86*72 |
| Displacement(L) | 0.418 |
| Power(kw) | 6.3/3600rpm |
| Fuel consumption rate(g.KW/h) | ≤280 |
| Compression ratio | 19 |
| Lubrication system | Pressure Splashed |
| Engine starting system | Recoil starter |
| Fuel type | Summer 0# Winter -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Fuel tank capacity(L) | 5.5 |
